Try AP Physics 1 Unit 3 Real-Exam Style Questions
Question

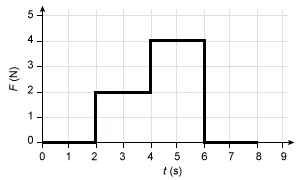

A block is initially at rest on a horizontal, frictionless surface. A force F is exerted parallel to the block’s displacement and varies over time t, as shown in the graph above. The block moves 1 m during the initial 4 s, then 4 m from t = 4 s to t = 6 s. What is the average power delivered to the block between t = 0 s and t = 6 s?
| A. 1 J/s | |
| B. 3 J/s | |
| C. 8 J/s | |
| D. 12 J/s |
Explanation
The work (W) done on an object is equal to the net force (F) applied to the object, multiplied by the distance (d) the object moves, and the cosine of the angle (θ) between the force and displacement vectors:
The applied force transfers energy to the object, which produces changes in the object's kinetic energy and, if applicable, the system's potential energies.
Power (P) is the rate of energy transfer in a system. The average power delivered to an object is defined as the total amount of work done on the object over a time interval ∆t:

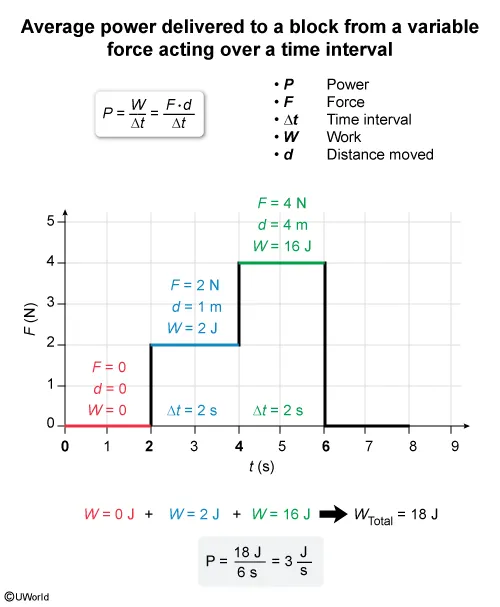

The average power applied to the block can be determined from the data in the graph. From 0 s to 2 s, the block experiences zero force and zero work is imparted to the block. Subsequently, from 2 s to 4 s, a 2 N force moves the block 1 m. The work done over this time is:
Next, from 4 s to 6 s the force increases to 4 N and the block moves 4 m:
Hence, the total work delivered to the block between 0 s and 6 s is:
(Choices A and C) 1 J/s and 8 J/s are the individual power values delivered from 2 s to 4 s and 4 s to 6 s, respectively.

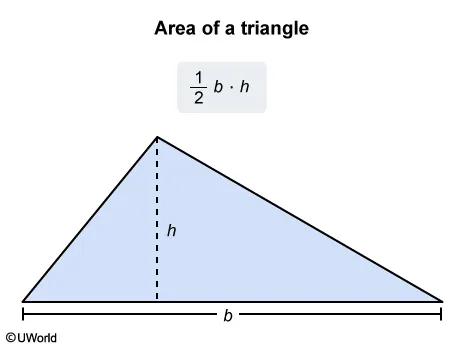

(Choice D) The total area under the curve is 12 N∙s, which does not have the correct units for power (J/s).
Things to remember:
Power is the rate of energy transfer. Average power is calculated from the amount of work done on an object over time.
Question

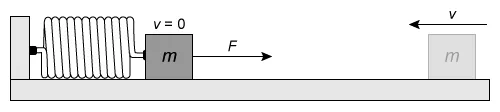

A block of mass m slides across a frictionless surface with a speed v until it collides with a spring that is initially uncompressed. At the instant the block comes to rest, the compressed spring exerts a force F on the block, as shown in the figure above. The spring is then reset, and the experiment is repeated with a second block of mass 4m and speed v/4. What is the maximum spring force required to stop the second block?
| A. | |
| B. | |
| C. | |
| D. |
Explanation
The work W done on an object is equal to the net force (F) applied to the object, multiplied by the distance (d) the object moves, and the cosine of the angle θ between the force and displacement vectors:
Furthermore, the work-energy theorem states that the net work done on an object equals its change in kinetic energy, ΔKE:

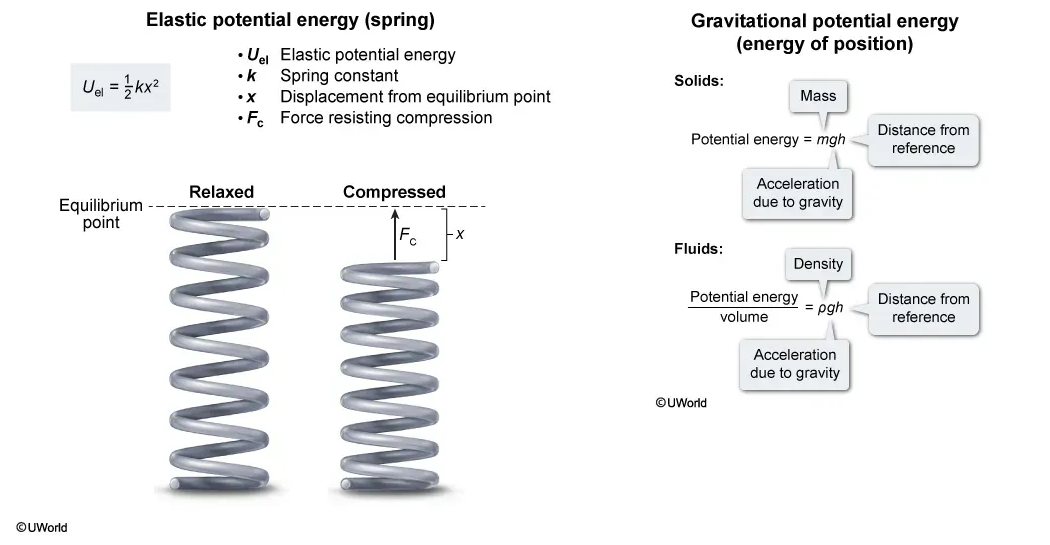

In addition, Hooke's law implies that a spring exerts a force Fs with a magnitude that is proportional to, and in the opposite direction of, the displacement from equilibrium x of the spring:

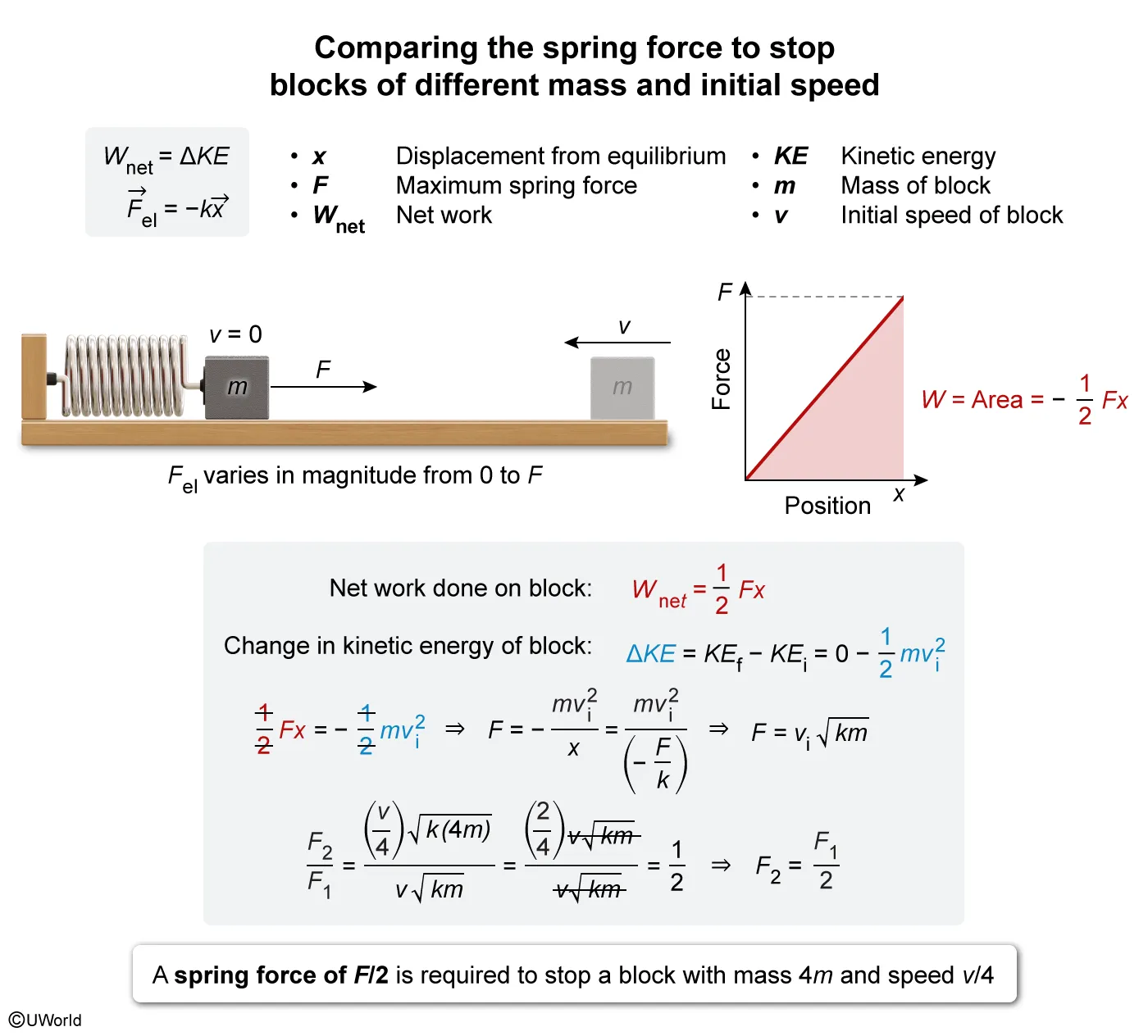

In this question, the spring force varies linearly in magnitude from 0 to F as the spring compresses. Hence, the work Wnet on the block is equal to the area beneath the graph of force as a function of position (i.e., the area of the triangle):
As a result of the negative work done by the spring on the block, the KE of the block decreases to zero:
Combining the two previous equations:
Since :
The ratio of the force F2 on a block of mass 4m moving with a speed v/4 to the force F1 on a block of mass m moving with a speed v yields:
Therefore, the maximum spring force required to stop a block with mass 4m and initial velocity v/4 is F/2.
(Choice A) A spring force that is independent of the mass of the block would have a magnitude of F/4, but the spring force also depends on mass.
(Choice C) A KE that is proportional to v would result in a spring force F, but KE is proportional to v2, not v.
(Choice D) A spring force that is independent of the speed of the block would have a magnitude of 2F, but the spring force also depends on v.
Things to remember:
According to the work-energy theorem, the work done on an object equals its
change in kinetic energy. The force exerted by a compressed spring is
proportional to the displacement of the spring from equilibrium. The area
beneath a graph of force as a function of position equals work.
Question

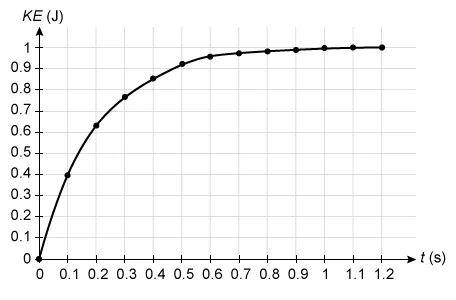

The graph of kinetic energy as a function of time for an object dropped from rest and falling through the air is shown in the figure above. The net work done on the object from t = 0 s to t = 1.2 s is most nearly equal to which of the following?
| A. The slope of a line connecting the origin and the point on the graph at 1.2 s | |
| B. The area under the curve between the origin and 1.2 s | |
| C. The value of the graph at 1.2 s | |
| D. The slope of the tangent to a best-fit line at 1.2 s |
Explanation
The work W done on an object is equal to the net force F applied to the object, multiplied by the distance (d) the object moves, and the cosine of the angle θ between the force and displacement vectors:
Furthermore, the work-energy theorem states that the net work done on an object equals its change in kinetic energy, ΔKE:

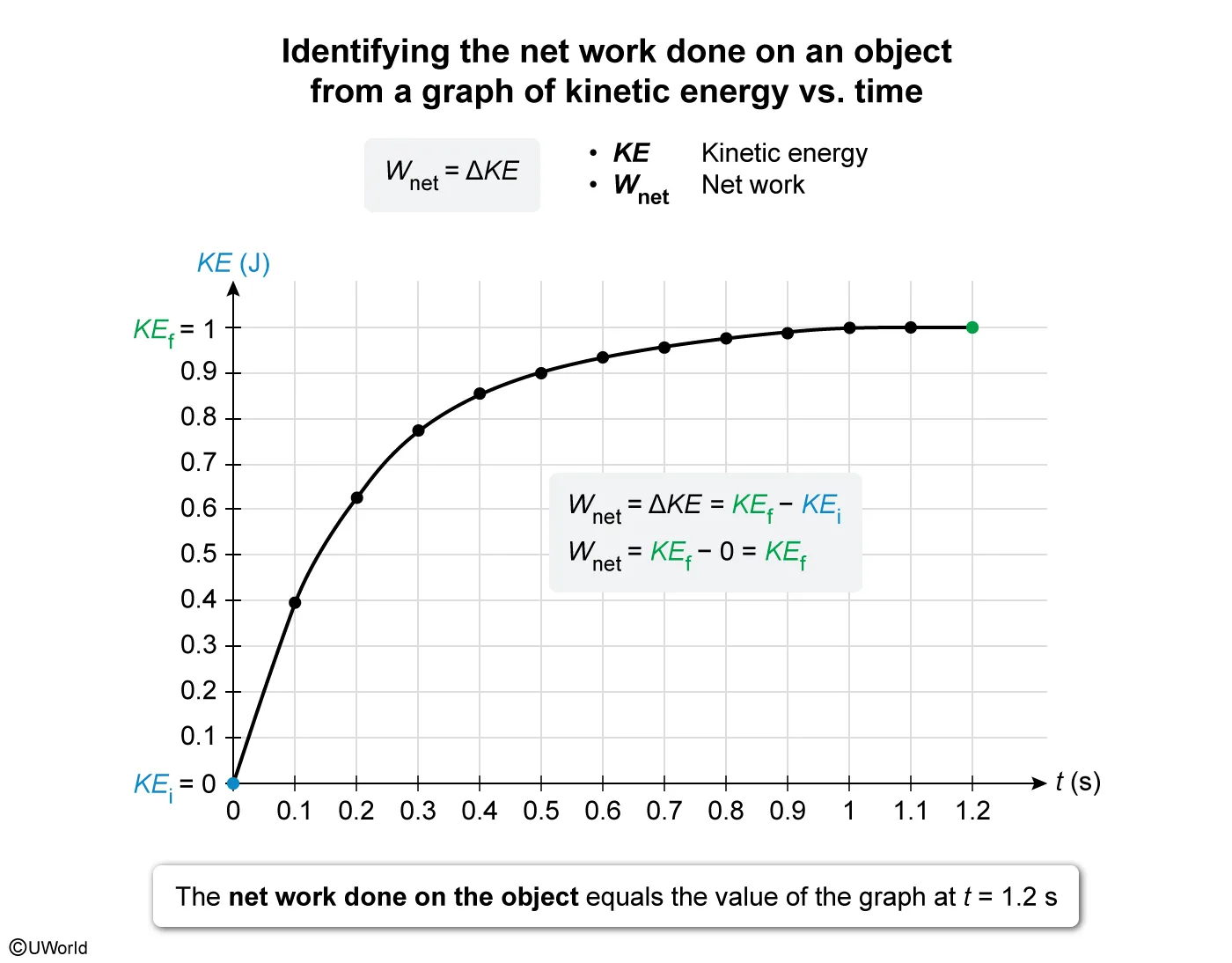

In this question, the change in kinetic energy ΔKE of the falling object can be determined from the graph as the difference between the final and initial kinetic energies. Since the initial KE equals zero:
Moreover, the net work done on the object equals the change in kinetic energy:
Therefore, the net work equals the value of the graph at t = 1.2 s (ie, the final kinetic energy):
(Choice A) The slope of a line connecting the origin and the point on the graph at 1.2 s represents the average power exerted on the object, not the net work done on the object.
(Choice B) The area beneath a graph of kinetic energy as a function of time does not have meaning in this context.
(Choice D) The slope of the line tangent to the curve at 1.2 s represents the instantaneous power exerted on the object, not the net work done on the object.
Things to remember:
The work-energy theorem implies that the net work done on an object equals
its change in kinetic energy. The change in kinetic energy (and the net work
done) can be found from the initial and final data points on a graph of
kinetic energy as a function of time.
